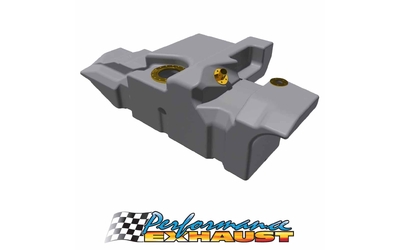

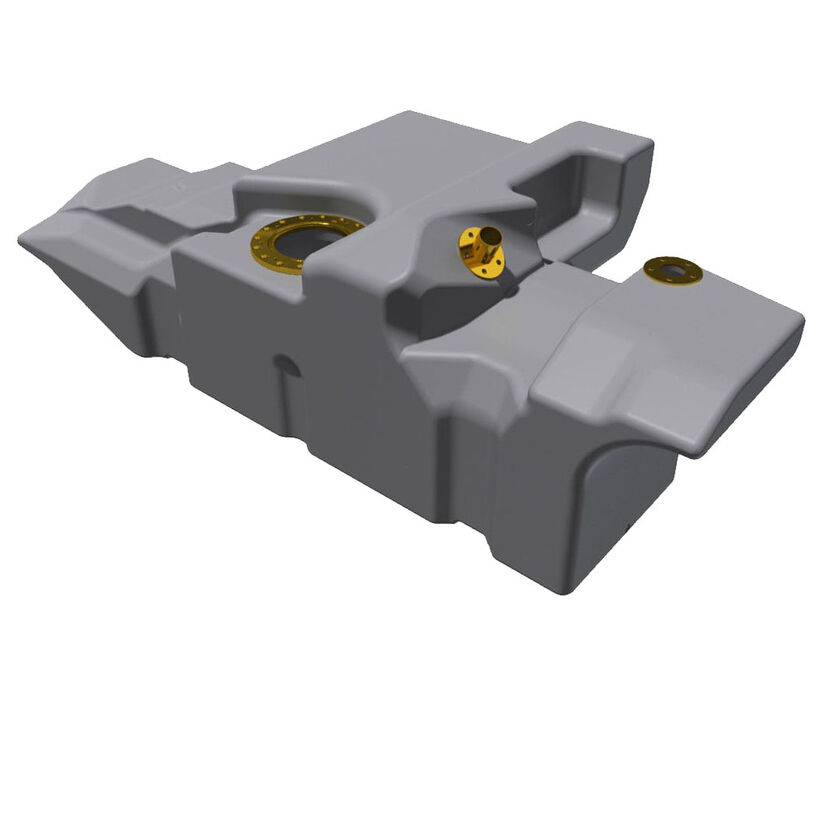

Brown Davis Long Range Fuel Tank - Poly Replacement 145L

SUITS FOLLOWING VEHICLES
Toyota Hilux GUN126R 4WD Diesel Models - 2015 onward
Excludes 48V Model - See Part Number PT-TH15R1-48V

SPECIFICATIONS

  • Replaces Factory Tank
  • 145L Capacity - 81.24% Increase on Standard
  • True Shape Moulding Process - Maximises Space
  • Wall Thickness 7mm / Base Thickness 11-14mm
  • Shape Memory - Reverts Back to Original Shape After Impact
  • Standard Fuel Supply Method
  • Retains Standard Filler Point
  • No Modifications Required
  • Black Finish
  • 3 Year Warranty

FEATURES

  • Roll over check valve and expansion box for fuel expansion and venting
  • Tapered approach angle to reduce frontal impact and improve ramp over clearance
  • Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)
  • Filler tube connects to vehicles original filler point
  • Fuel pump sender flanged designed to re-use vehicles original equipment
  • Fuel Line Locators for ease of fitment and to prevent kinking



VEHICLE DRIVING RANGE - Figures Based on Dual Cab 4x4 SR5 (As quoted by Toyota)
Manual 7.6L per 100kms/Automatic 8.5L per 100kms
Standard 80L Tank - 1052.63km/941.18km 145L Long Range Tank - 1907.89km/1705.88km



WHY CHOOSE A BROWN DAVIS TANK?

  • Laser Cut Aluminised Steel
    Manufacturing their steel tanks with laser cut aluminised steel ensuring that you get the the strength and durability plus the anti-corrosive benefits of aluminium to add to its longevity.
  • Folded Before Welded
    Before welding the tank, Brown Davis uses specialised machinery to fold the steel, decreasing the build time and adding superior strength.
  • High Quality Welding
    Experienced welders add the brackets, swirl pot and baffles to the tank weld it all together using jigs to locate the brackets for each individual tank so installation is as easy and consistent for every vehicle.
  • Pressure Tested
    Pressure testing invloves a soap test, submersion test and a pressure gauge. These techniques help identify any rare leaks prior to the product being ready for sale



FITTING INSTRUCTIONS
Fits with most aftermarket suspension and air bag suspension
 - Confirmed with OME/ARB, TJM, EFS, Pedders, Iron Man, Tuff Dog, Dobinsons & Air Bag Man
Fits with most aftermarket 3" exhausts
 - Confirmed with Redback, Big Boar & Taipan
Fits with most aftermarket alloy and steel trays - Filler may need relocationg after fitment. Some under tray draws may intefere with tank.
Fits with most dual battery trays
Confirmed with ARB, Pirahna & BD Tray
Confirmed fitment on vehicles from South Africa, Thailand / Asia
Fitment by a professional is recommended


Due to selling on multiple platforms, stock availability may not be accurate. Please contact us for stock level enquiries.
Image is for illustration purposes only, product may vary.





All Brown Davis products come with a Manufacturer Warranty from the date of invoice.

This warranty is limited to repairing or replacing any part which appears upon inspection by Brown Davis Automotive Pty Ltd or its agents to be defective in material or workmanship.

WARRANTY PERIOD

Private Use – Applies to the earlier of 3 years or 60,000kms
Commercial Use – Applies to the earlier of 2 years or 40,000kms

WARRANTY TERMS
Warranty replacement parts are only issued after inspection of part by the manufacturer (this may require return of the product to our Knoxfield head office) and are subject to approval. Should there be a dispute Brown Davis Automotive Pty Ltd will determine whether the item was used for private and domestic purposes or commercial and industrial use.

Performance Exhaust will provide a replacement part (no refunds) for the following issues:
Item is damaged and unusable upon arrival
There is a manufacturing fault with the product
Product has failed due to a manufacturing fault or quality

All warranties are limited and do not apply if:
Parts are not installed correctly
Parts have been abused, altered or damaged in any way
Parts are not correctly maintained
Parts are not operated within the manufacturers specifications, installed on modified or high performance engines, vehicles or race cars.


Manufacturer Warranty covers the replacement of the part only and does not include any additional costs of labour, fitting or damages. Performance Exhaust is not liable for losses or expenses incurred due to defects or any third party claims.


SKU PT-TH15R1
Brand Brown Davis
Shipping Weight 25.0000kg
Shipping Width 0.670m
Shipping Height 0.470m
Shipping Length 1.500m
Shipping Cubic 0.505440000m3
Unit Of Measure ea
Assembled Length 1.500m
Assembled Height 0.470m
Assembled Width 0.670m
