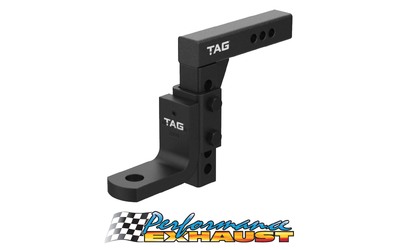

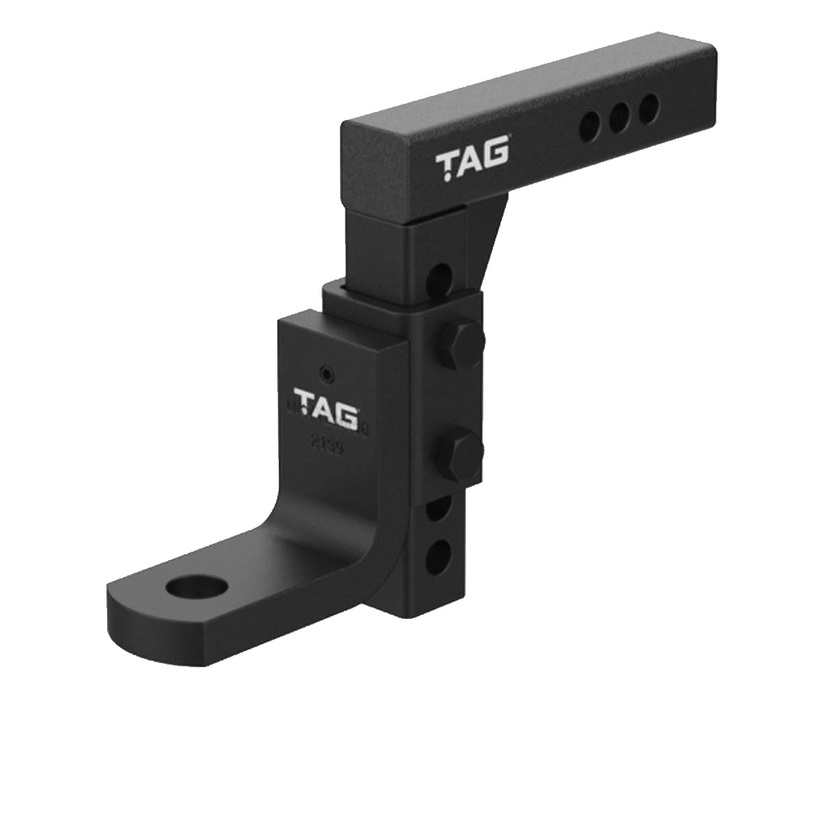

Tow Ball Mount - Heavy Duty Adjustable for 115mm Drop or Rise - Up to 4500kg

The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup. For full compatibility, the unit includes a reducer allowing the use of a 70mm or 50mm tow ball. Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping.

FEATURES

  • 90° Separate Tongue Face with four adjustable positions

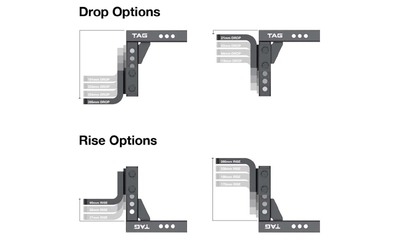

  • 115mm Drop or Rise
  • Fits 70mm Tow Ball (or 50mm tow ball with reducer ring)
  • Gross Trailer Weight 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)
  • Ball Weight 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)
  • Durable Powder Coated Finish
  • ADR 62/02 Compliant
  • TAG Limited Lifetime Warranty
  • Tow Ball, R-Clip & Hitch Pin Sold Separately



FITTING INSTRUCTIONS
Ensure you tighten Allen key grub screw before main attachment bolts
Torque spec on bolts that attach head to shank is 280nm
Click here for Fitting Instructions



Due to selling on multiple platforms, stock availability may not be accurate. Please contact us for stock level enquiries.
Image is for illustration purposes only, product may vary.





SKU UNTTBM450
Brand TAG
Shipping Weight 10.0000kg
Shipping Width 0.350m
Shipping Height 0.250m
Shipping Length 0.350m
Unit Of Measure ea
