VOLKSWAGEN AMAROK 2.0LT TD 2011-CURRENT



BRAND NEW BROWN DAVIS

LONG RANGE FUEL TANK

TANK TYPE: REPLACEMENT
CAPACITY: 135 Litres
FILLER POINT: STANDARD
FUEL SUPPLY METHOD: STANDARD

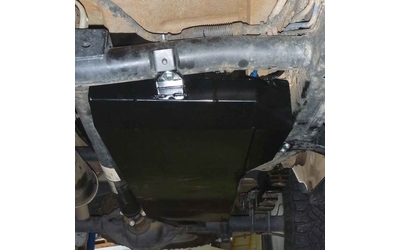

TANK LOCATION: REPLACES VEHICLES STANDARD TANK
FITTING TIME: 2.5 hour/s
MODIFICATIONS: NONE REQUIRED
COMMENTS: DOES NOT AFFECT EXHAUST OR SPARE WHEEL

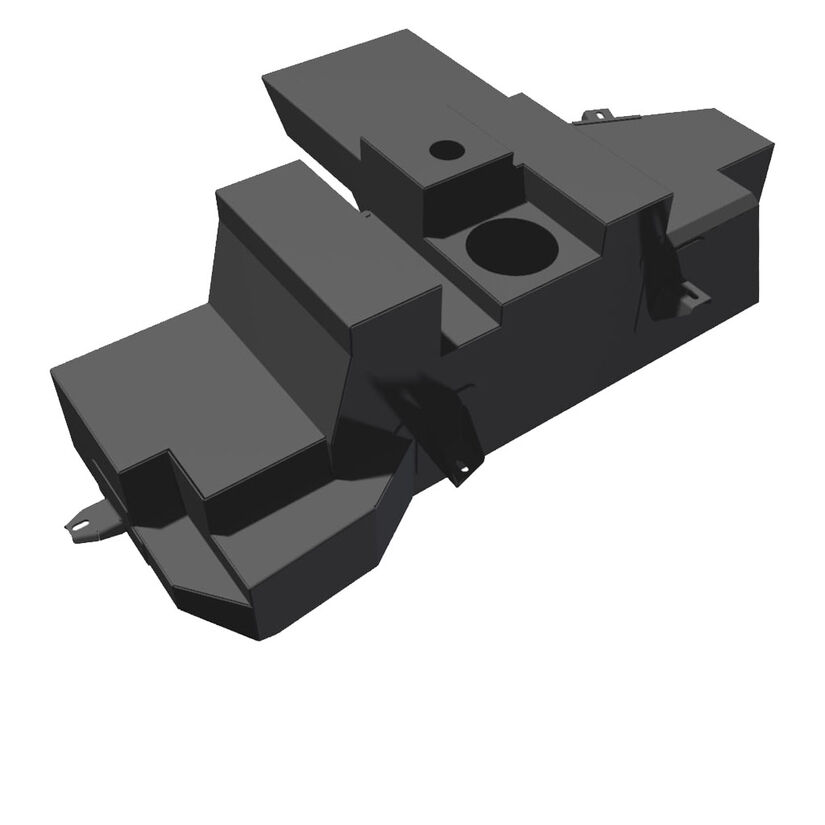

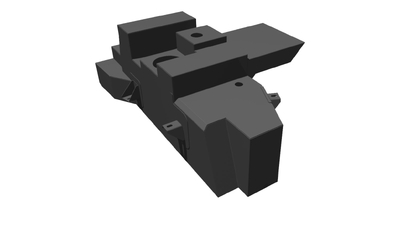

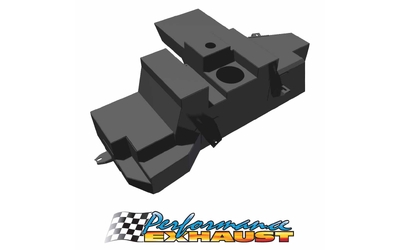

KEY FEATURES OF A BROWN DAVIS REPLACEMENT TANK
Tapered approach angle to reduce frontal impact and improve ramp over clearance
Longitudinal and lateral baffling system to prevent fuel slosh and to strengthen tank structure
Gusseted brackets with double thickness pads to spread tank mounting loads
Fuel pump sender flange designed to re-use the vehicle's original equipment
Swirl pot designed to carrel fuel around the pick up point
Roll over check valve and expansion box for fuel expansion and venting
Fast fill breather for rapid filling and to reduce bowser shut off
Filler tube, connects to vehicles original filling point
Magnetic drain plug, horizontal and flush mounted to prevent damage


Fuel Tank Construction material:
All Brown Davis long range fuel tanks are constructed from high grade 2mm 14 gauge - Aluminum coated cold rolled steel, to ensure maximum strength and durability. This gauge of steel is sufficiently resistant to damage by impact, and therefore additional tank guards are not necessary (most standard tanks are less than 2mm in material thickness). This material is specifically imported by Brown Davis based on critical specifications. Unlike aluminum, steel is not prone to fatigue from vibration and twisting as seen in off road conditions. This fatigue resistance far outweighs any weight advantage aluminum may offer. However, the aluminum coating on the specific steel used by Brown Davis, offer's the strength of steel with the anti corrosion properties of aluminum.



****BUY WITH CONFIDENCE FROM AN AUTHORISED BROWN DAVIS DEALER****



LARGE BULKY ITEM WHICH IS KEPT IN STOCK BY OUR SUPPLIER, SO PLEASE CHECK STOCK BEFORE PURCHASING TO MAKE SURE THEY ARE AVAILABLE STRAIGHT AWAY



FITTING INSTRUCTIONS
FIT DIFFICULTY: EASY.

2.5 HOUR JOB WITH MINIMAL MECHANICAL KNOWLEDGE. MINIMAL TOOLS REQUIRED WITH GOOD STEP BY STEP INSTRUCTIONS INCLUDED.





All Brown Davis products come with a Manufacturer Warranty from the date of invoice.

This warranty is limited to repairing or replacing any part which appears upon inspection by Brown Davis Automotive Pty Ltd or its agents to be defective in material or workmanship.

WARRANTY PERIOD

Private Use – Applies to the earlier of 3 years or 60,000kms
Commercial Use – Applies to the earlier of 2 years or 40,000kms

WARRANTY TERMS
Warranty replacement parts are only issued after inspection of part by the manufacturer (this may require return of the product to our Knoxfield head office) and are subject to approval. Should there be a dispute Brown Davis Automotive Pty Ltd will determine whether the item was used for private and domestic purposes or commercial and industrial use.

Performance Exhaust will provide a replacement part (no refunds) for the following issues:
Item is damaged and unusable upon arrival
There is a manufacturing fault with the product
Product has failed due to a manufacturing fault or quality

All warranties are limited and do not apply if:
Parts are not installed correctly
Parts have been abused, altered or damaged in any way
Parts are not correctly maintained
Parts are not operated within the manufacturers specifications, installed on modified or high performance engines, vehicles or race cars.


Manufacturer Warranty covers the replacement of the part only and does not include any additional costs of labour, fitting or damages. Performance Exhaust is not liable for losses or expenses incurred due to defects or any third party claims.

SKU VWAR1
Brand Brown Davis
Shipping Weight 45.0000kg
Shipping Width 0.820m
Shipping Height 0.470m
Shipping Length 1.370m
Shipping Cubic 0.299040000m3
Unit Of Measure ea
Assembled Length 1.370m
Assembled Height 0.470m
Assembled Width 0.820m
